A production line for intermittently bonded ribbon is instrumental in crafting flexible fiber groups for contemporary, high-count cable architectures. It maintains organized fiber alignment for expedited mass fusion splicing, yet accommodates the group’s flexibility within a compact cable core.
In contrast with fully bonded ribbons, intermittent bonded ribbons feature small bond points at predetermined intervals. This strategic placement allows fibers to remain aligned while the ribbon can conform to circular loose tubes and other confined spaces.
Fiber network engineers apply this technique when faced with constraints in duct space, splice closures, and equipment racks. A properly engineered ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
Intermittent Bonded Ribbon Fibers in Stainless Steel Tube Fiber Coloring Machine
Key Takeaways
- An intermittent bonded ribbon production line supports flexible, high-density fiber layouts.
- Discrete bond points keep optical fibers organized without making the ribbon stiff.
- Flexible ribbons help cable makers fit more fibers into compact circular cable designs.
- Mass fusion splicing is faster when fiber order remains stable and clear.
- Ribbon cable systems support data centers, telecom backbones, and fiber access networks.
Intermittent Bonded Ribbon Production Line Overview
This ribbon production method enables the creation of fiber designs that balance compactness with usability. This method involves applying bond points at controlled intervals, allowing for the movement of fiber subunits between these points.
This technique facilitates the incorporation of a higher number of fibers within constrained duct spaces. It also ensures the preservation of the organized ribbon structure, essential for efficient splicing and cable assembly processes.
How Does An Intermittently Bonded Optical Fiber Ribbon Work?
An intermittently bonded optical fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds are left flexible, enabling the ribbon to adopt various configurations without rigidification.
This configuration is often referred to as a rollable, flexible, or spider web ribbon. It contrasts with the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
For splice preparation, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers form compact bundles, optimizing space utilization within the cable.
Why High-Density Fiber Networks Need Flexible Ribbon Technology
Fiber network planners must address the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure allows ribbon groups to fit into smaller cable cores, preserving fiber order.
The fiber density ratio is a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding can improve this ratio, allowing ribbon groups to occupy available spaces within the cable.
For network installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

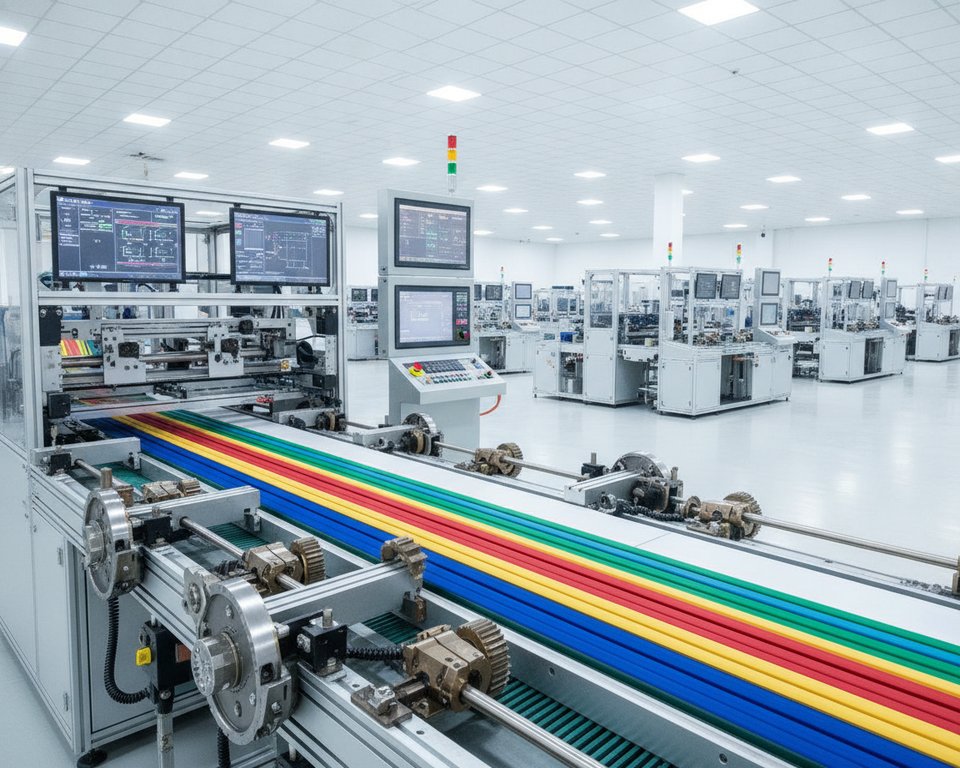

Intermittent Bonded Ribbon Production Line
| Ribbon Feature | Intermittently Bonded Ribbon Design | Traditional Continuous Ribbon |
|---|---|---|
| Bonding pattern | Discrete bonds at predetermined intervals | Continuous bonding throughout the ribbon length |
| Fiber form between bonds | Can roll, curl, or fold for compact packing | Remains predominantly flat and planar |
| Splice preparation position | Can be arranged flat for mass fusion splicing | Is continuously maintained in a flat ribbon shape |
| Cable packing role | Supports dense, flexible subunit placement | Typically uses a fixed ribbon stack configuration |
| Typical cable application | Compact high-density and flexible ribbon cable structures | Traditional flat ribbon cable designs |
Intermittently Bonded Ribbon Materials And Construction
A flexible bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture enables high-density cable structures while allowing effortless separation during handling, routing, and splicing.
The selection of materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must maintain its fibers securely without imparting undue stiffness to the ribbon.
Optical Fiber Counts And Subunit Arrangement
Flexible bonded ribbons may support 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A typical 12-fiber design may use six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
The inclusion of small gaps between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Ribbon Construction Element | Common Arrangement | Production Purpose |
|---|---|---|
| Ribbon fiber count | 4, 8, 12, 24, or as many as 36 fibers | Aligns fiber count with cable density and splice capacity |
| Fiber subunit layout | Two neighboring fibers in each optical fiber subunit | Supports controlled separation between groups |
| Fiber spacing in a subunit | Touching or up to 1.5 fiber diameters | Maintains a compact and stable profile |
| Gap between subunits | 5 to 100 micrometers | Improves flexibility at bond locations |
Wet-On-Wet Bonding And UV-Curable Resin
Subunit coatings and bonding materials frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
This process creates a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
UV-curable resins can intermingle at the interface before curing. This supports molecular interaction between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Essential Equipment In An Intermittent Bonded Ribbon Production Line
A fiber ribbon line integrates advanced motion control with meticulous material handling. Each station helps fibers stay clean, aligned, and stable from the initial payoff to the final winding.
The production equipment supports adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to manufacture customized flexible ribbon, preserving the integrity of the fiber order.
Fiber Payoff With Tension Control
Payoff units deliver individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
During ribbon production, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Discrete Bond Applicator And Coating Die
The coating system applies a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
A discrete bond applicator then places a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Equipment | Core Function | Manufacturing Benefit |
|---|---|---|
| Payoff tension system | Supplies fibers under controlled tension | Minimizes twisting and uneven fiber loading |
| Subunit coating die | Forms coated fiber subunits | Keeps subunit dimensions and shape consistent |
| Intermittent bond applicator | Deposits resin at set intervals | Provides controlled flexible bonds between subunits |
| UV cure and take-up system | Handles UV curing, cooling, inspection, and final winding | Helps protect bond quality and organized fiber placement |
Ribbon Take-Up, Cooling, And UV Curing Equipment
UV lamps cure the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
The cooling stage lowers ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
Take-up equipment winds the finished ribbon with low, even tension. Proper winding protects the cured ribbon structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Preparation, Alignment, And Color Sequence Control
The foundation of a stable ribbon cable with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Fiber Identification Management For Splicing And Maintenance
Consistent fiber color identification is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
With higher fiber-count cables, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Fiber Number | Fiber Identification Color | Process Purpose |
|---|---|---|
| 1 | Standard blue | Starts the standard fiber color sequence |
| 02 | Orange | Allows quick identification during handling |
| 03 | Green | Maintains the specified planar order |
| 4 | Brown | Helps verify subunit placement |
| 05 | Slate | Creates a clear mid-sequence identifier |
| 6 | White | Improves visibility during inspection |
| 7 | Red | Helps maintain accurate splice documentation |
| 8 | Standard black | Supports sequence identification inside splice trays |
| 09 | Yellow | Supports rapid identification during restoration work |
| 10 | Violet | Helps distinguish later positions in the standard sequence |
| 11 | Rose | Supports high-count ribbon identification |
| 12 | Standard aqua | Completes the standard color order |
Preventing Fiber Twisting And Uneven Tension
Payoff systems and guides are essential in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Operators meticulously monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
Intermittent Bond Application And UV Curing Process
The intermittent bonding process joins fiber subunits without solidifying the ribbon into a rigid form. This method facilitates compact routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Bonds At Predetermined Intervals
The production equipment applies bonding points at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
A precise applicator dispenses a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends help minimize localized stress changes when the cable bends or twists.
Creating Strong, Flexible Bond Interfaces
Wet-on-wet processing requires applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
The resulting material gradient affects various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features help the bond resist peeling while facilitating separation when required.
Controlling UV Curing Performance
UV curing systems must deliver consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Process personnel carefully track bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Quality Control For Fiber Ribbon And Flexible Flat Cable Output
Maintaining the integrity of each flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Regular inspections are critical in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Inspection Of Bond Spacing, Ribbon Width, And Thickness
Bond spacing remains a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Quality checks are performed to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Inspection Point | Items Checked | Process Value |
|---|---|---|
| Fiber identification | Fiber count, color sequence, and position | Helps ensure accurate splicing and maintenance |
| Intermittent bond arrangement | Bond placement, separation distance, and subunit joining | Maintains flexibility and fiber organization |
| Ribbon geometry | Dimensional width, thickness, and flatness | Ensures the ribbon works with downstream handling and splicing tools |
| Finished surface quality | UV cure state, coating coverage, and defects | Protects the ribbon against damage during take-up |
Optical And Mechanical Performance Testing
Mechanical testing focuses on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing includes evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Optical attenuation checks and handling evaluations are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Automation, Efficiency, And Precision Winding
The essence of efficient ribbon production on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Production Line Synchronization And Process Data Monitoring
Automated control systems synchronize payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Manufacturing data records capture fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Stable payoff tension helps prevent fiber stretch and looseness.
- Controlled bond timing maintains regular intervals between bond points.
- Dimension monitoring identifies width and thickness variations quickly.
- Winding data facilitates lot tracking and downstream handling.
Preparing Wound Ribbon For Downstream Cable Manufacturing
A precision cable winder helps ensure the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon structures may be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
For customized ribbon products, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Process Area | Primary Control Focus | Resulting Benefit |
|---|---|---|
| Fiber payoff | Stable tension and correct color sequence | Correct ribbon positioning in downstream cable construction |
| Bond application | Controlled bond intervals and resin quantity | Flexible ribbon behavior during handling |
| UV cure stage | Controlled lamp output and exposure time | Properly cured bonds before ribbon winding |
| Cable winding system | Uniform traverse with controlled spool tension and layering | Smooth payout for central tube or loose tube loading |
Ribbon Cable Applications, Splicing, And Connector Planning
Ribbon fiber plays an important role in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A meticulously planned ribbon cable assembly enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Benefits Of Mass Fusion Splicing
A ribbon fusion splicer facilitates the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
This approach minimizes handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
Loose tube cable, on the other hand necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Dense Link Connection Planning
Multi-fiber connections commonly use MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
Connection planning also includes transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Connection Planning Item | What It Controls | Typical Network Use |
|---|---|---|
| Number of ribbon fibers | Splice capacity and cassette selection | 12-fiber and 24-fiber network backbones |
| MPO or MTP multi-fiber connector | Polarity, gender, and port compatibility | Data center trunks and 5G equipment rooms |
| Multi-fiber harness or fanout assembly | Transition from multi-fiber connections to single-fiber ports | Network switch connections and patch fields |
| Network loss budget | Allowed loss from splices, connectors, and fiber length | High-speed data transmission cable routes |
Shanghai Weiye OFC Equipment For Fiber Ribbon Production Lines
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to support consistent manufacturing, facilitate clear operator control, and enable seamless integration into production lines.
For initiatives requiring an intermittent bonded ribbon production line, SHWY provides equipment for each stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Experience With Optical Fiber And Cable Machinery
Established in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
SHWY became independent in 2020, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
Relevant SHWY Production Equipment Portfolio
The SHWY equipment portfolio includes a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
For fiber ribbon manufacturing projects, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
The company’s extensive range further includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Conclusion
An intermittently bonded ribbon production line combines fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step helps preserve fiber sequence while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resulting ribbon structure provides efficient mass fusion splicing and organized fiber management. It is well suited to applications involving high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Successful project planning goes beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
